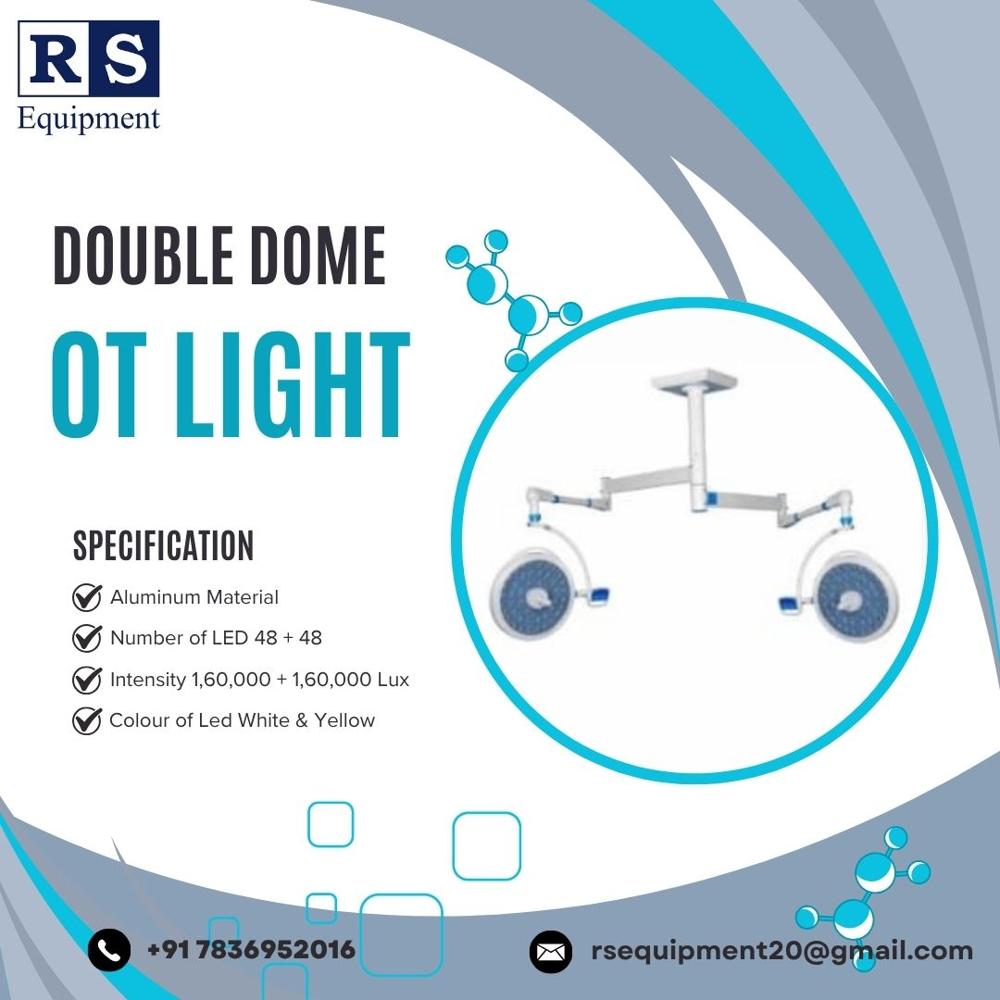

OT Light Double Dome 48+48

Name: OT Light Double Dome 48+48
Brand: R.S Equipment
Price: 60000.0 INR
Availability: InStock

Price 60000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

OT Light Double Dome 48+48 Specification

Weight
Around 22 kg

Usage & Applications
Operation Theater Lighting

Thickness
Dome Thickness: 1.8 to 2 mm

Surface Finish
Powder Coated

Pole Type
Ceiling Mounted

Mounting Type
Ceiling Mount

Features
Shadowless illumination, Sterilizable handle, High CRI, Energy Efficient

Product Type
Double Dome OT Light

Material
Stainless Steel and High-grade Polycarbonate

Rated Power
48W + 48W

Length
Adjustable Arms (Up to 1.5 meters)

Voltage
220-240V AC

Lighting
LED

Input Voltage
110-240V

Working Temperature
-10C to 50C

Rated Current
0.4A

Socket
Standard Medical Electrical Socket

Color
White and Blue

Height
Adjustable (Ceiling Mounted)

Rotation
360 dome and arm rotation

Back-up Power Option
Compatible with UPS/Inverter

Illumination Intensity
110,000 Lux 10% per dome

Noise Level
Silent operation (<30 dB)

Power Supply Frequency
50-60 Hz

Color Temperature
4300 K (300 K)

Focusing Adjustment
Manual Sterilizable Center Handle

Number of LED Bulbs
48 + 48 LED modules

Light Field Diameter
100-250 mm (adjustable)

Dimming Capability
Digital Touch Controller

Life Span (LED)
>50,000 hours

Dome Diameter
500 mm each

Sterilization
Easy dismount for cleaning and disinfection

CRI (Color Rendering Index)
>95

Heat Generation
Low Heat (Cold Light)

OT Light Double Dome 48+48 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA)

Supply Ability
10 Pieces Per Week

Delivery Time
5-7 Days

Sample Available
No

Packaging Details
Box Packing

Main Domestic Market
All India

About OT Light Double Dome 48+48

Double Dome OT Lightin a hospital is a surgical lighting system designed for use in operating theatres, consisting of two dome-shaped light heads that work together to provide bright, shadow-free illumination over the surgical field.

Detailed Description:

Dual Light Heads:
Two dome-shaped units, each containing multiple high-intensity LED or halogen bulbs arranged to provide even, overlapping light coverage.
Shadow-Free Illumination:
The two domes can be positioned independently to eliminate shadows caused by surgeons hands, heads, or instruments.
Adjustable Intensity And Focus:
Brightness can be dimmed to suit different procedures, and beam focus can be altered for deep or surface lighting.

Precision Lighting for Surgery and Procedure

The OT Light Double Dome 48+48 provides concentrated, adjustable illumination ideal for complex surgical procedures. With its high-intensity 110,000 Lux lighting, manual focus, and wide adjustable light field, it delivers exceptional clarity and minimal shadows, supporting precise clinical performance while minimizing visual fatigue for the surgical team.

Advanced Ergonomics and Hygiene

Designed for seamless operation and easy cleaning, each dome is equipped with a sterilizable handle and can be easily dismounted for thorough disinfection. The digital touch controller enables effortless dimming control, and the system runs silently and coolly, enhancing the safety and comfort of the operation theater environment.

Flexible Installation and Reliable Power Options

Featuring ceiling mounting, adjustable arms up to 1.5 meters, and 360 dome and arm rotation, the light adapts to various surgical positions. The luminaire is compatible with standard medical sockets and can connect to UPS/inverter systems, ensuring continuous operation even during power interruptions-critical for today's demanding surgical settings.

FAQ's of OT Light Double Dome 48+48:

Q: How is the light field diameter of the OT Light Double Dome 48+48 adjusted?

A: The light field diameter can be adjusted manually using the sterilizable central handle, allowing for a range between 100 to 250 mm to suit different surgical procedures and preferences.

Q: What is the benefit of having a high Color Rendering Index (CRI) above 95 in this surgical light?

A: A CRI above 95 ensures that the natural colors of tissues and structures are accurately rendered, significantly aiding surgeons in identifying critical anatomical details during procedures.

Q: Where can the OT Light Double Dome 48+48 be installed?

A: This light is designed for ceiling mounting in operation theaters and surgical suites. Its adjustable arm (up to 1.5 meters) and 360-degree rotation allow flexible positioning to meet the needs of various medical procedures.

Q: What process should be followed for cleaning and sterilizing the domes?

A: The domes are constructed from high-grade materials and can be easily dismounted for cleaning. The central handle is sterilizable, ensuring compliance with strict hygiene protocols for operation theater equipment.

Q: How does the digital dimming feature enhance light usage during procedures?

A: The intuitive digital touch controller allows seamless adjustment of light intensity, enabling users to customize illumination based on the procedure's requirements, improving both efficiency and safety.

Q: What makes this light energy-efficient and safe for continuous use?

A: The use of advanced LED modules keeps power consumption low (48W per dome) with minimal heat output, ensuring both energy efficiency and a cool, comfortable environment in the operating room.
